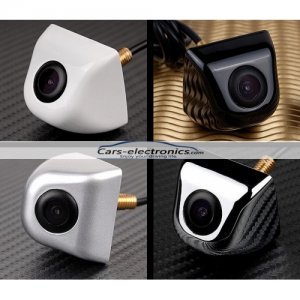

Car Rear View Camera Waterproof with Reversing Reference Line Four Colors Available
Features:
1.)OV-7950 image sensor
2.)Resolution: 420TVL
3.)1.7mm waterproof fixed lens,made-in-korea
4.)Wide view angle: 170°
5.)Waterproof IP68
6.)Low illumination:0.3 Lux / F2.0
7.)With reversing reference line
8.)High aluminum alloy,anti-high temperature,anti-earthquake,anti-wear
9.)Available housing colors:black,white,chrome optional
10.)DC12V+/-10%
Specifications:
1.)Number of Pixels:NTSC:512(H)*492(V)
2.)Image sensor:OV-7950
3.)Horizontal Resolution:420TVL
4.)Waterproof Resistance:IP68
5.) Usable Illumination:0.3 Lux (F:2.0)
6.) Auto Gain Control:Auto
7.)Gamma Characteristic:0.45
8.)S/N Ratio: more than 48dB
9.)White Balance:Auto
10.)Video Output:RCA Connector,1.0Vp-p 75ohm,Negative
11.)Electronic Shutter Time:Auto:NTSC 1/60-1/100,000Sec
12.)Scanning System: NTSC 525 Lines,60Field/Sec
13.)Sync System:Internal Synchronization
14.)Lens focal length:1.7mm waterproof fixed lens,made-in-korea
15.)View angle:170°
16.)Operation Temperature:-20℃- +50℃ RH 95% Max
17.)Storage Temperature:-40℃- +60℃ RH 95% Max
18.)Housing material: high aluminum alloy
19.)Available housing colors:Black,white,Chrome
20.)Power Supply:DC12V +/-10%
Accessories:
5m video cable,1.5m power cable,user manual
